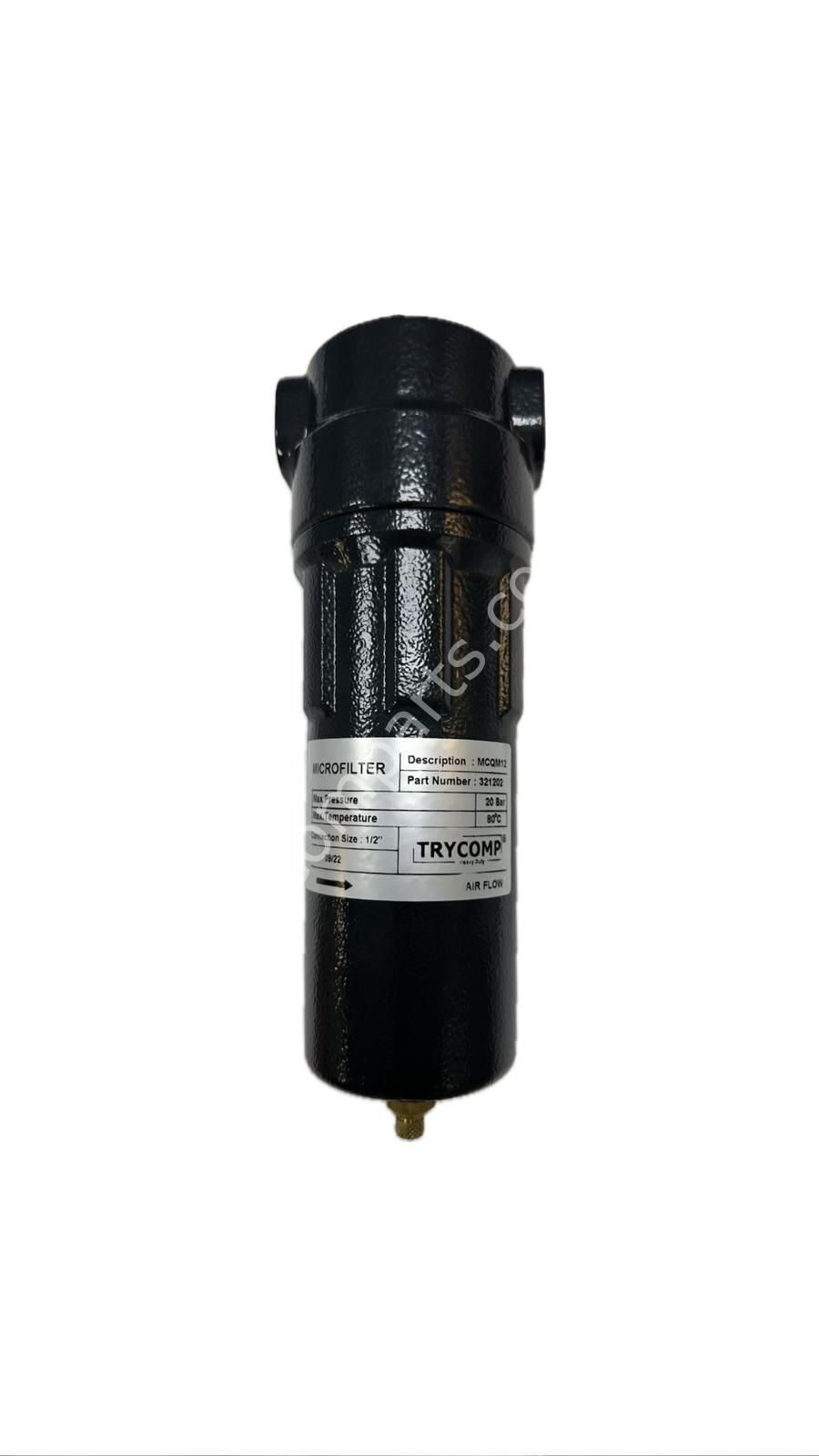

MCQM40 Compressed Air Filter – Micro Filter – 240 m³/h – 16 Bar
The MCQM40 compressed air filter is a reliable solution that provides precise filtration of oil mist, water particles and contaminants in small volume air systems.
The air flow rate of 240 m³/h and the capacity of 4000 l/min make this filter particularly suitable for compact air compressors and pneumatic applications .
Working pressure of 2 to 16 Bar and temperature tolerance of 2°C – 80°C ensure long-term and safe use.
Technical Specifications
Model: MCQM40
Capacity: 240 m³/h – 4000 l/min
Operating Temperature: Min: 2°C / Max: 80°C
Working Pressure: Min: 2 Bar / Max: 16 Bar
Filter Type: Micro filter
Area of Use: Compressor outlet, before dryer, sensitive applications
Areas of Use
Small air compressors
Laboratories and technical applications
CNC and automation systems
Medical and food production
Industrial workshop environments
Product Features
Effective air purification with 240 m³/h air flow rate
Quality and dry air with micro filter structure
High pressure resistance up to 16 bar
Wide temperature range (2°C – 80°C)
Saves space with its compact design
Low maintenance cost, easy installation
The MCQM40 Micro Air Filter offers maximum filtration performance for small volume systems and increases system efficiency.
