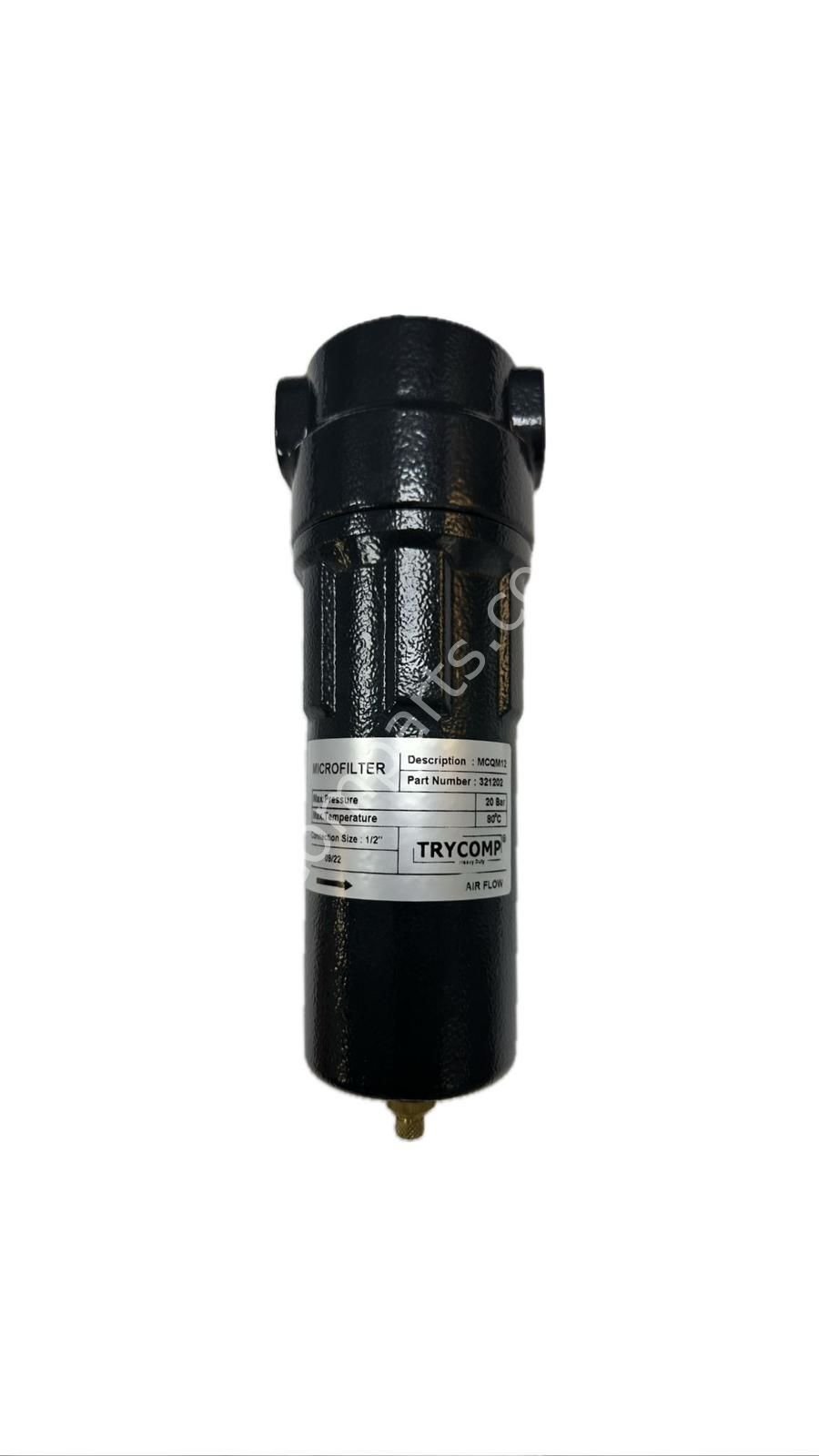

MCQM12 Compressed Air Filter – Micro Filter – 87 m³/h – 16 Bar
The MCQM12 compressed air filter is a compact and reliable micro filter that improves the quality of compressed air by filtering oil mist, moisture and particles in low-volume air systems.
The air flow rate of 87 m³/h and the capacity of 1450 l/min make this filter suitable for small compressor systems and sensitive applications.
Working pressure of 2 to 16 bar and temperature range of 2°C – 80°C guarantee long-lasting and stable performance.
Technical Specifications
Model: MCQM12
Capacity: 87 m³/h – 1450 l/min
Operating Temperature: Min: 2°C / Max: 80°C
Working Pressure: Min: 2 Bar / Max: 16 Bar
Filter Type: Micro filter
Area of Use: Compressor outlet, before the dryer
Areas of Use
Compact air compressor systems
Laboratory environments
CNC machines and automation lines
Food, pharmaceutical and beverage production systems
Technical services and maintenance applications
Product Features
High precision filtration with 87 m³/h air flow
Particle-free and dry air with micro filter technology
Safe use up to 16 bar pressure
Compact and space-saving design
Easy installation and low maintenance costs
Long-lasting performance with durable body structure
The MCQM12 Micro Air Filter is a professional solution that provides reliable air cleaning for low volume systems.
